The Johnnette JR5 is a medium range Drone designed solely for Drone Pilot Training. JR5 has an endurance of 30minutes and is highly stable which makes it perfect for new pilots to train on.

Johnnette JR5 model has been exempted/approved for conducting RPAS training by MoCA

Johnnette JR5

One of the best and fastest ways to drastically increase your piloting skills is through practical flight training. Whether you just bought your first drone or have been flying for years, if you want to take your skills to the next level (or more) then we’d love to help you through our Johnnette JR5. Completely reliable and extremely safe for all levels of piloting skills. JR5 also allows to set geo fencing which will restrict the drone to fly away from the intended field of operation. JR5 has been Approved/Exempted by MoCA/DGCA for Drone Pilot Training, where the maximum range from the pilot is 30m (Geofenced).

The Johnnette JR5 medium range training  drone that allows any new pilot to safely train and enhance his flying skills

3000g

Weight

100m

Range

30min

Endurance

14kmph

Max Speed

Efficient



Johnnette JR5 is very stable and allows the pilot to efficiently enhance his piloting skills

Reliable



When it comes to training safety JR5 is the utmost factor. Johnnette JR 5 comes with various fail-safe optioned enabled making it the most  reliable drone

Affordability



Johnnette JR5 is less expensive compared to any other drone of the same category.

WhatsApp%20Image%202021-03-30%20at%2012.
WhatsApp%20Image%202021-03-30%20at%2012.

WhatsApp%20Image%202021-03-30%20at%2012.
WhatsApp%20Image%202021-03-30%20at%2012.

WhatsApp%20Image%202021-03-30%20at%2012.
WhatsApp%20Image%202021-03-30%20at%2012.

1/4

          KEY FEATURES



  • Highest system reliability

  • Complete Fail safe enabled

  • DGCA compliant NPNT readiness

  • Over 500 hours of test flights

  • Operational and maintenance training

  • Affordable and easy to operate

  • DGCA/MoCA Approved/Exempted for Drone Pilot Training

  • Customizable Payload Options

GENERAL SPECIFICATIONS



Aircraft Dimensions

Battery Quantity

All-Up Weight

Propeller

Frame

Transmitter

Receiver

Battery

Autopilot

PERFORMANCE

Hovering Accuracy (with GPS)

Max Angular Velocity

Max Pitch Angle

Max Speed of Descent



RADIO LINK

Transmitter Operating Frequency

Max Transmission Distance  (Manual)

POWER SOURCE

Battery Type

Battery Voltage

Discharge Rate

Battery Capacity

Charge Temperature

Charge Rate

850mm * 850mm * 335mm

1

3 Kg

Carbon Fiber

Carbon Fiber

FS-i6X

FS-iA6B

6S 10000mAh

Pixhawk Cube



Vertical: ±0.5 m, Horizontal: ±1.5 m

Pitch: 300°/s, Yaw: 150°/s

25°

0.5 m/s

2.4 GHz

500m

Li-ion Polymer

22.2V (Typ.)

25C

10000 mAh

41° to 104° F (5° to 40° C)

1C

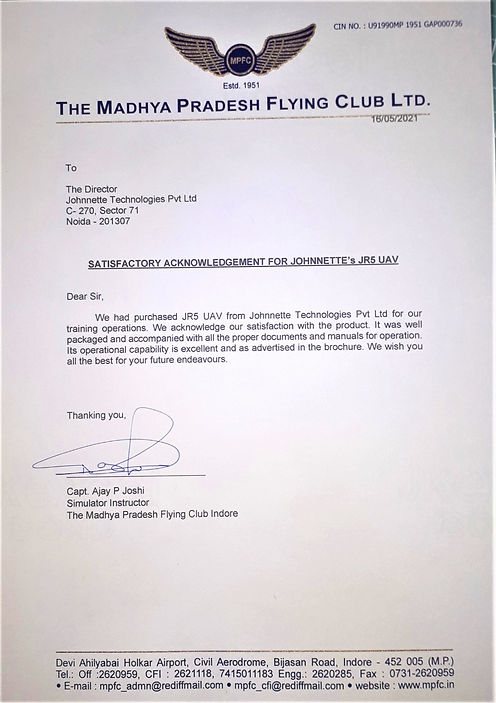

Satisfactory Letters

Autonomous Industries_page-0001.jpg
SBG Enterprise.jpeg
