| Wingspan | 220 cm / 2.2 m |
| Length | 153 cm / 1.53 m |
| Height | 30 cm / 0.3 m |
| Aircraft Weight | 4600 g / 4.6 Kg |
| PAYLOAD | Day & Night (Thermal) Gymbalised Cameras |

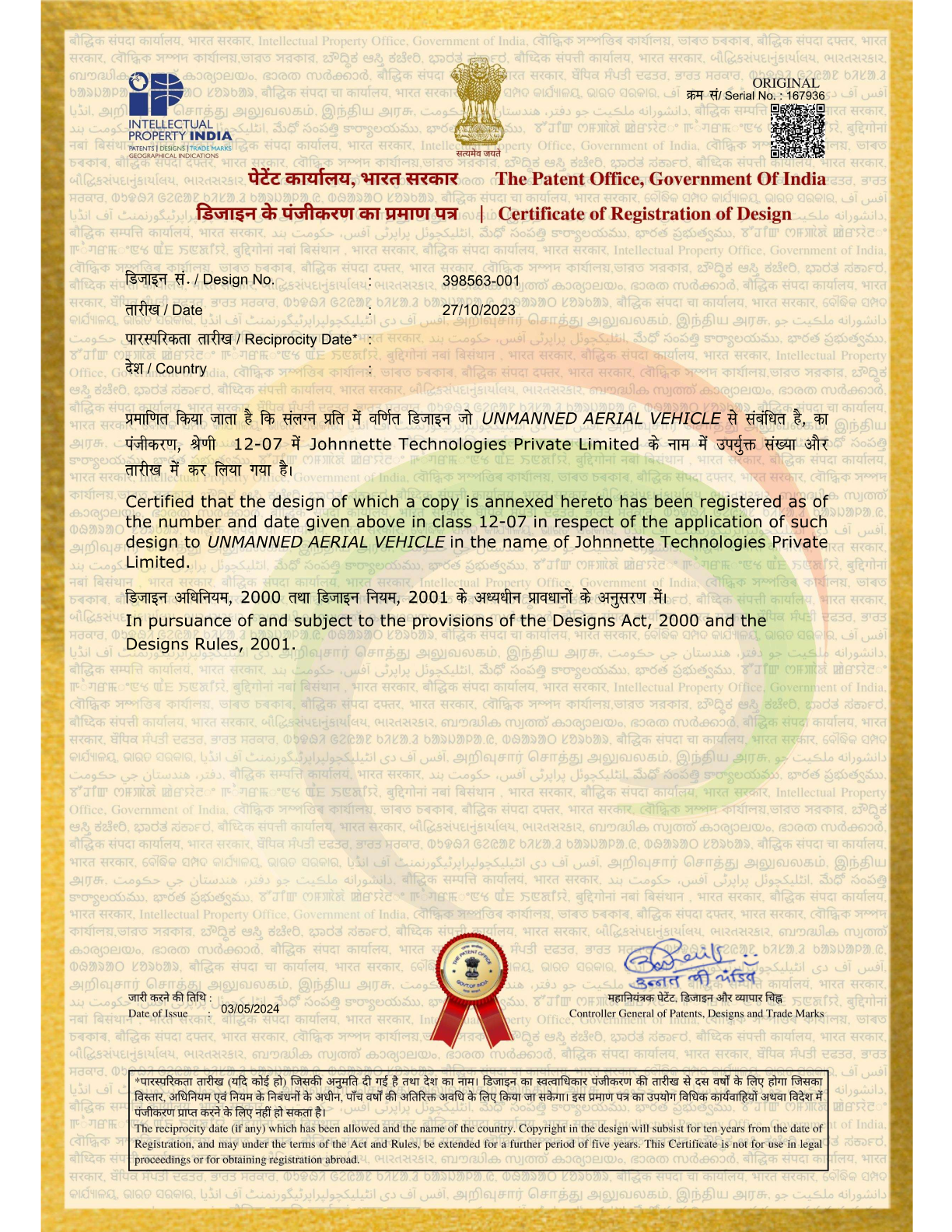

| Design Patented | Serial No. 167936 |
| Propulsion | Electric |
| Material | EPP+ Composite |
| Cruise Speed | 45 km/hr |
| Altitude Capabilities | Maximum 1000m Operational 500 m |
| Max Launch Altitude | 18000 ft |
| Endurance | 60 min/ 1 Hour |
| Maximum Speed | 60 km/hr |
| Range | 10 Km |
| Operating Temperature | -10° to 50°C (Field Tested) |

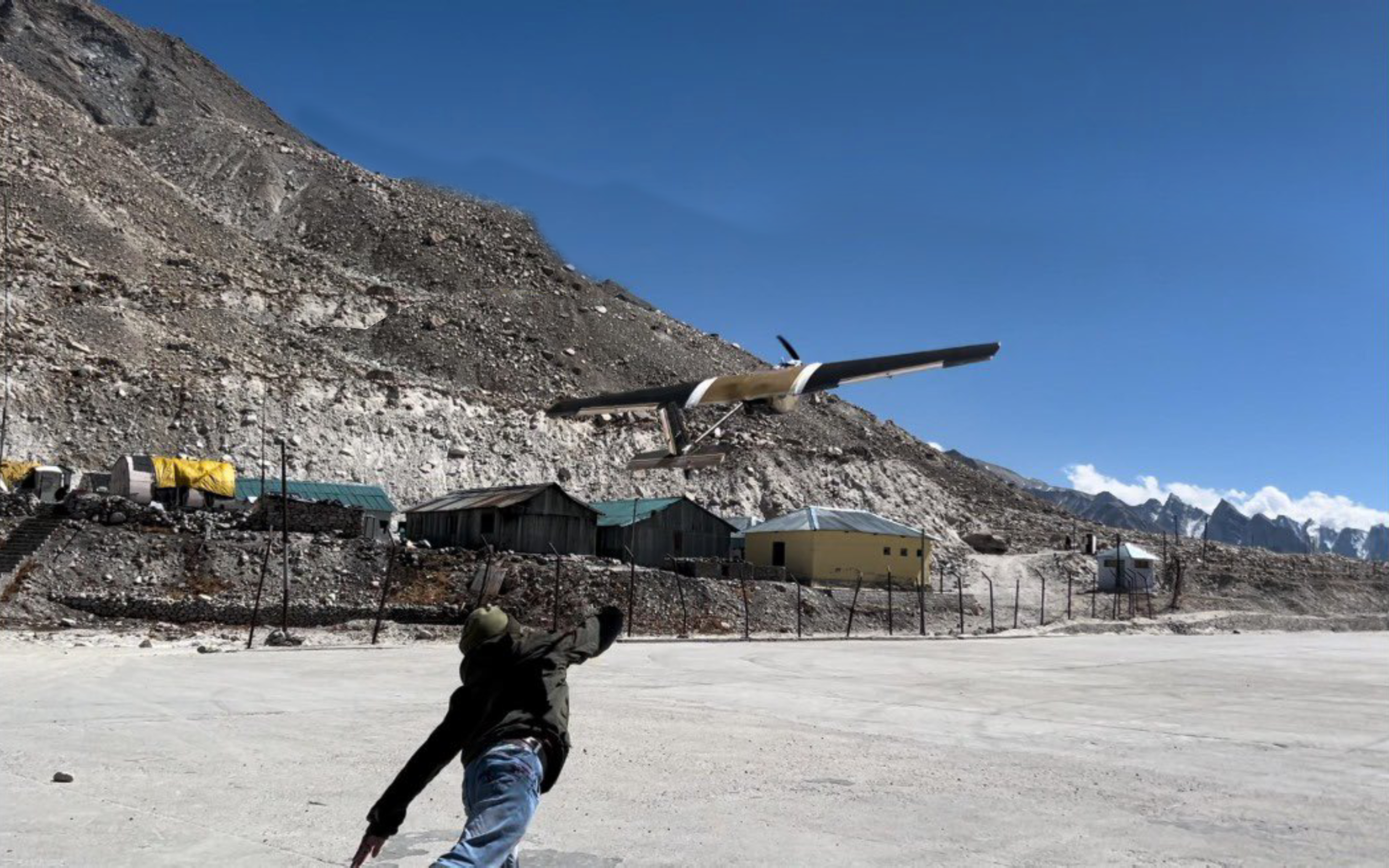

| Launch/Recovery | Hand Launch / Belly Landing |
FEATURES
- Communication
- HD Live Video Stream with Realtime data link
- Payload Options

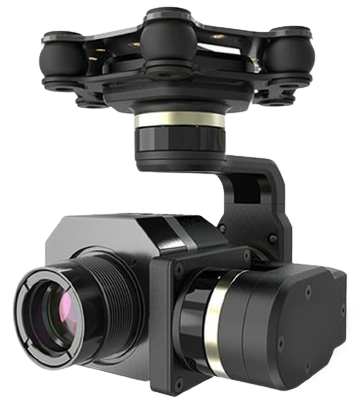

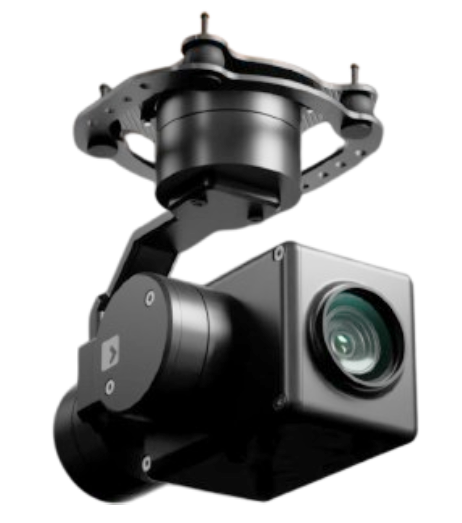

- Gimballed 1080p Day Camera with 10x Zoom 640p Thermal Camera with 4x digital zoom (Swappable Day and Night payload)
- Failsafe
- Return to Home on Low Battery and Communication Loss
FEATURES
- Flight Modes
- Manual, Auto, Loiter , GPS-assisted
- Intelligent Ground Control Station
- MIL STD All weather laptop integrated with our software
- Software
- Johnnette GCS (Closed Source) Encrypted

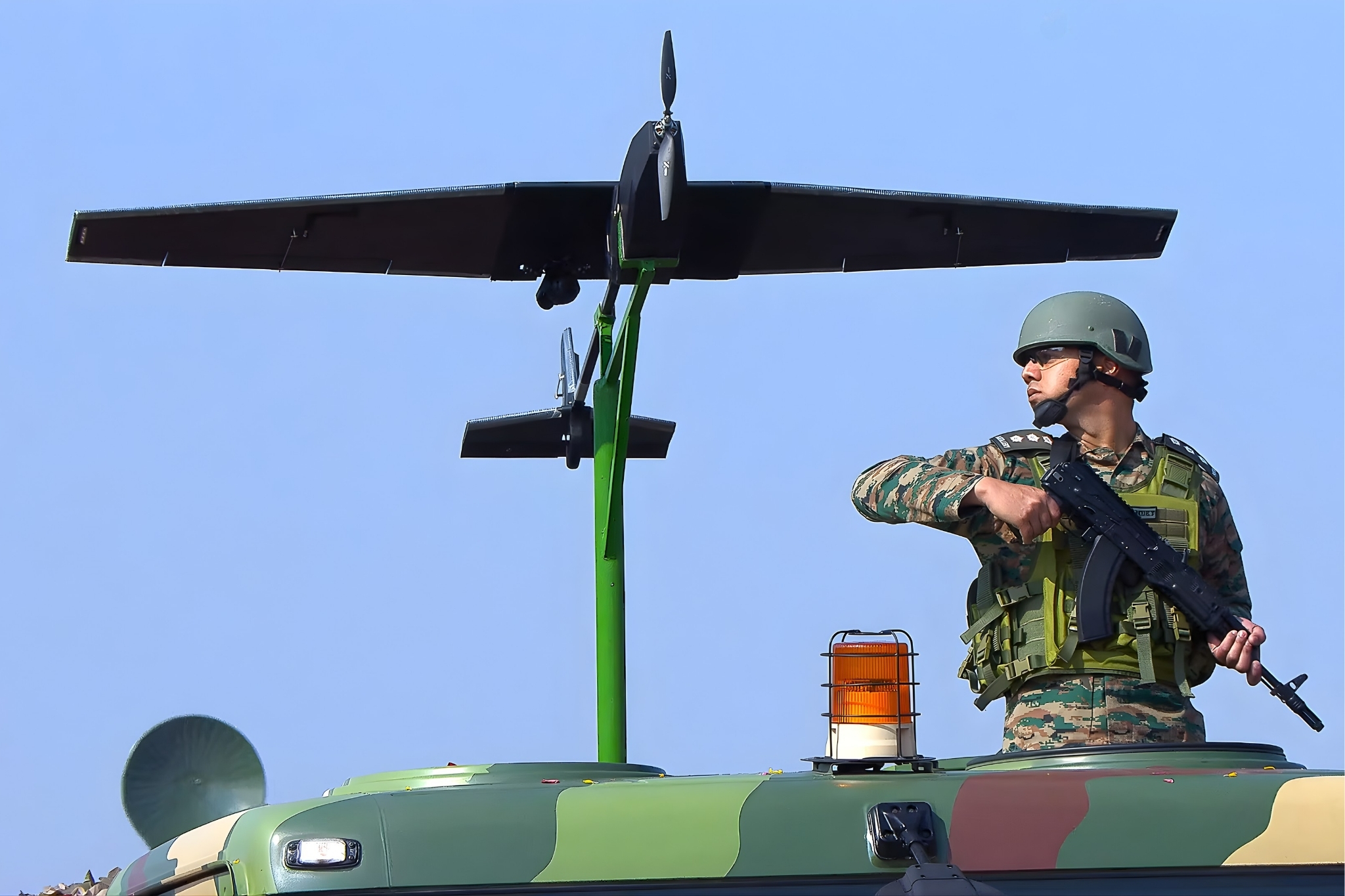

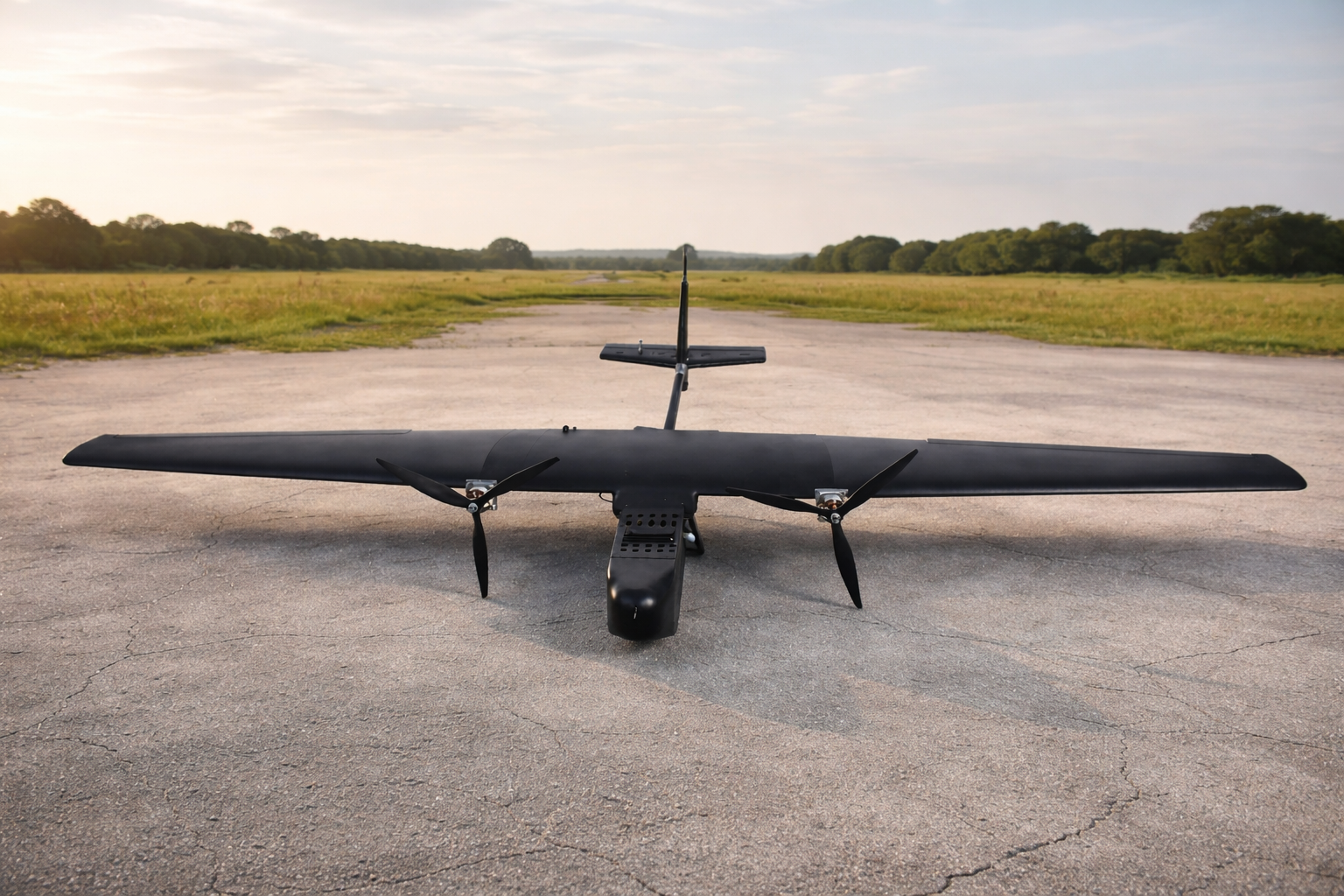

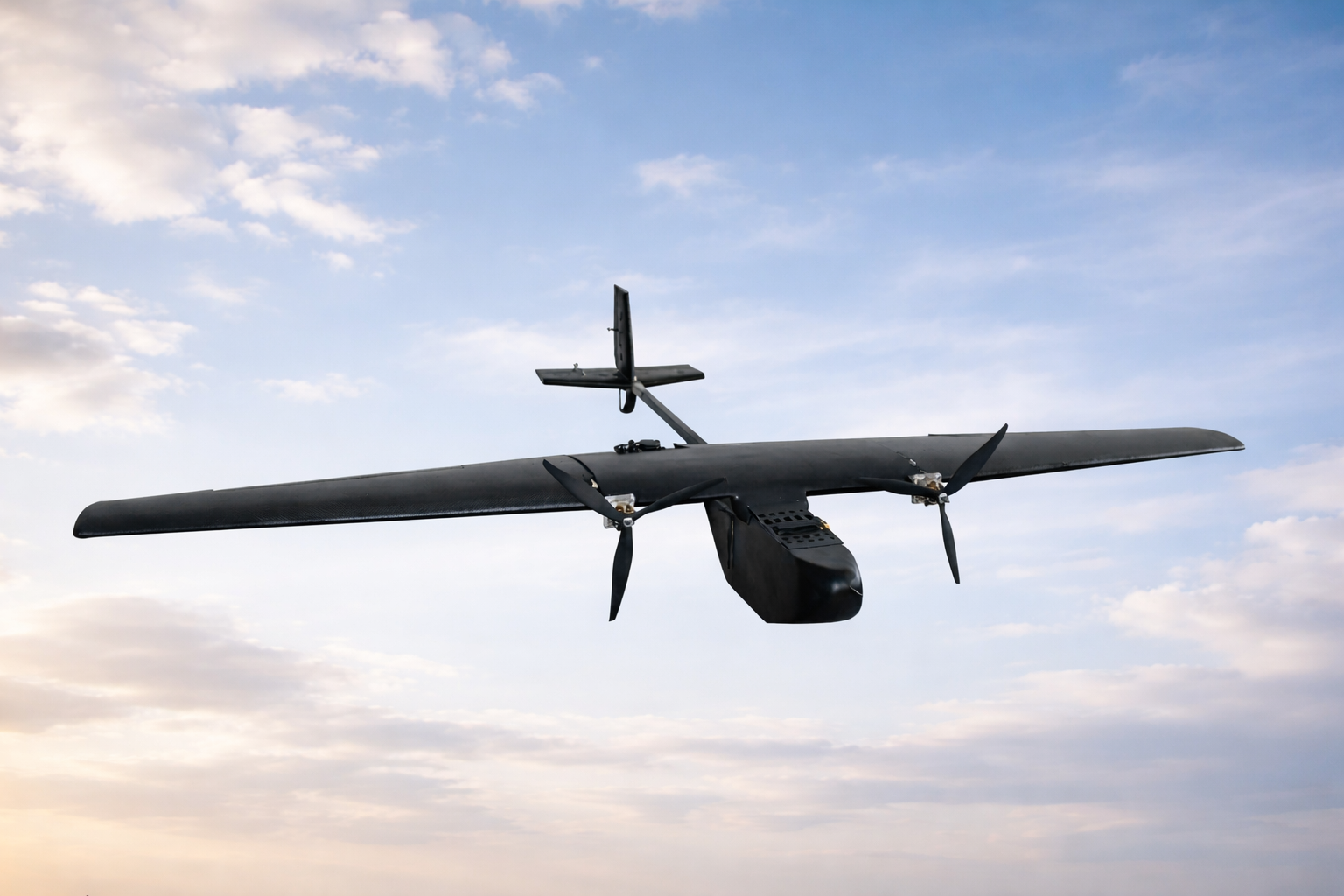

The JF-2 features a wingspan of 2.2 meters, granting it an avian-like appearance and facilitating effective radar camouflage due to its construction from EPP and composite materials. Beyond a distance of 100 meters, the aircraft's aural signature becomes almost imperceptible, rendering it an excellent choice for stealth operations both during the day and at night. Additionally, its crash-resistant avionics bay makes it an optimal solution for land forces.

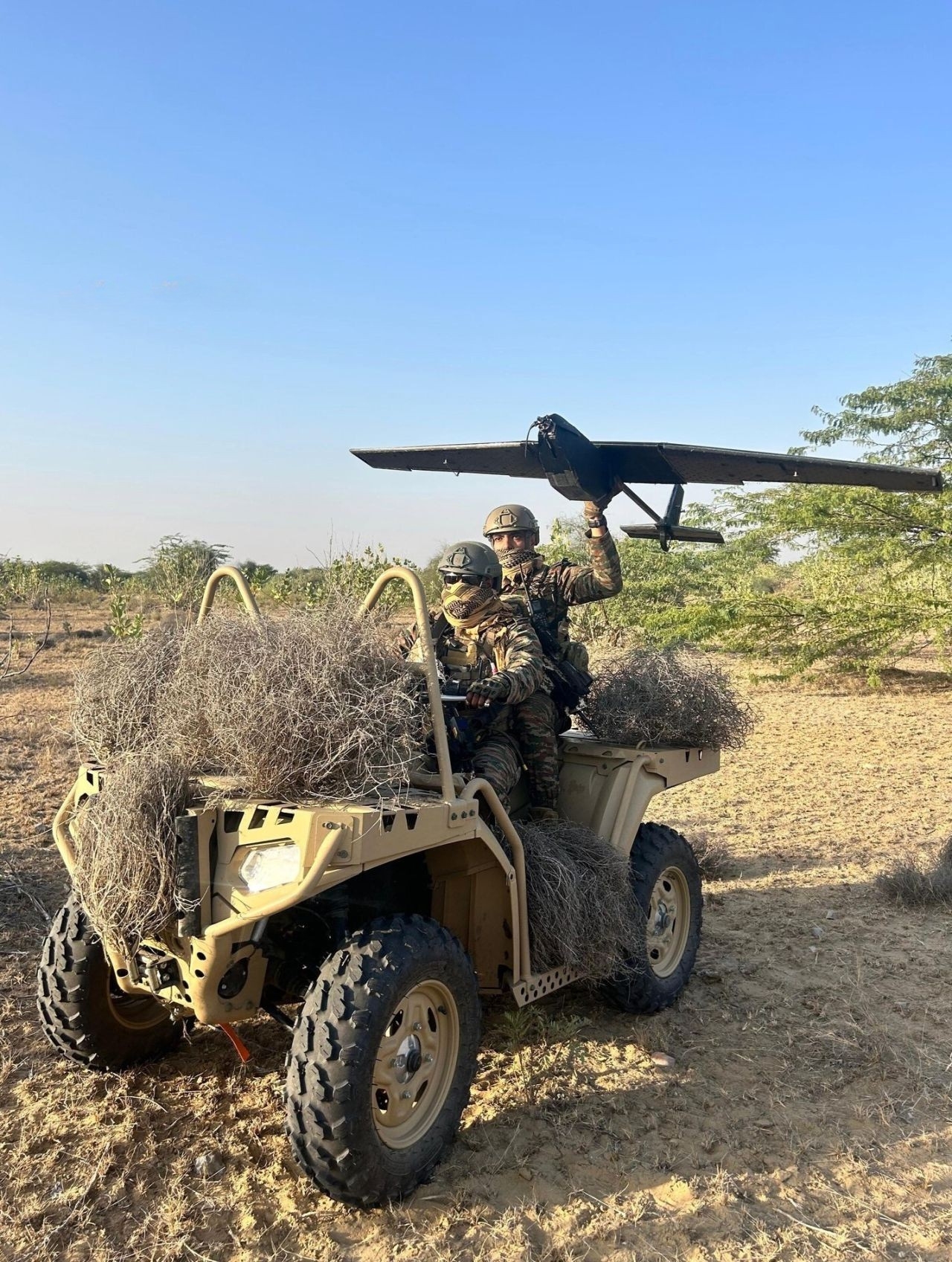

The JF-2 is adept at conducting Intelligence, Surveillance, and Reconnaissance (ISR) activities, equipped with a high-definition camera and a thermal imaging camera, making it suitable for operations in both daylight and night time conditions. This system can be effectively deployed using hand launch mechanism.
